Analog Feeling, Digital Advantage.

Preamp, Power Amp Simulator & IR Loader

World Class Amp Modeling & True Stereo IR Reproduction. (1024 Samples)

Stereo CYBER IR™ Engine with dual 1024 samples resolution.

– Independent Pre & Power amp simulation with TSAC-4K white-box amp modeling algorithm.

– World-class amp modeling algorithm with full functions. (Like 4 inputs for patch cable jumping).

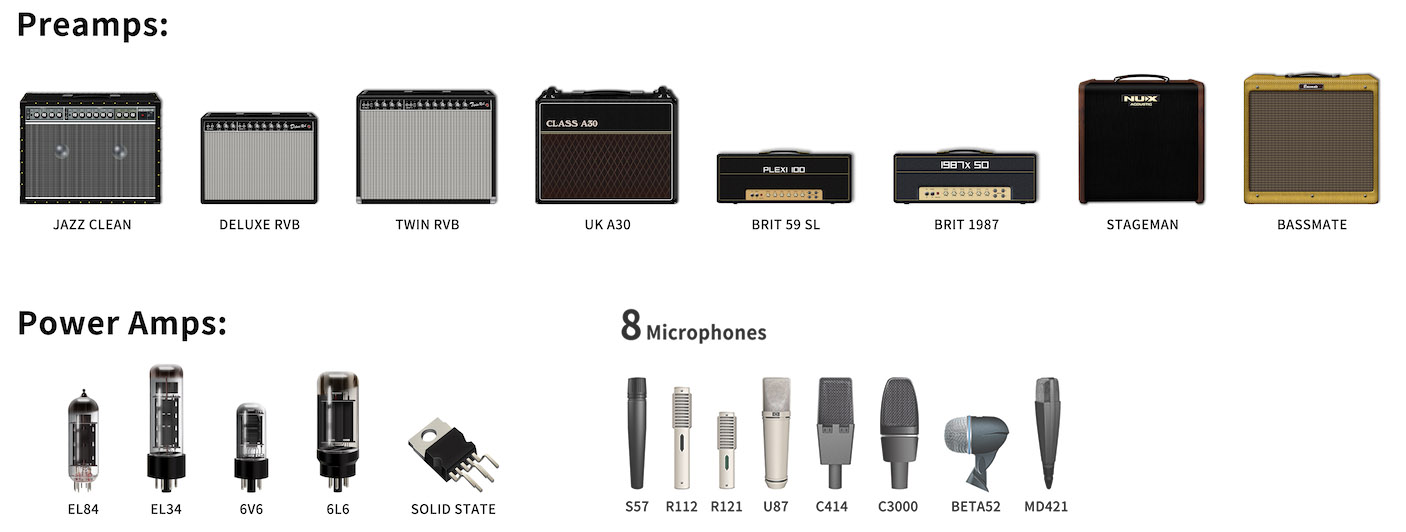

*Currently 8 classic AMP models.

– One-piece die-cast aluminum chassis.

– AMP, IR, EQ, AMB effect blocks with free routing order.

– 2.86″ color LCD display (960*376) with intuitive operations.

– 128 preset slots, independent L/R 60 IR slots.

– Built-in NOISE GATE, EQ, PHONES LEVEL, AUX IN LEVEL, OUT LEVEL in global setting.

– NORMAL, INJECT input modes. (INJECT to parallel the power amp signal.)

– USB audio interface, firmware update, SOLID STUDIO editor™ edit software.

– USB-C MIDI, THROUGH jack (parallel the Power Amp signal), stereo balanced 1/4” outs with GND lift, Phones Out for silent practice.

– Great Dynamic Range: 110dB.

– Ultra-low latency: 0.85ms (bypass), 1.9ms (efx engaged).

– INPUT Impedance: 1MΩ

– AUX IN Impedance: 10kΩ

– OUTPUT 1, OUTPUT 2 Impedance: 100Ω

– Phone Impedance: 10Ω

– Dynamic Range: 110dB

– Sampling Rate: 48kHz/32bit

– System Latency: 0.85ms (Bypass); 1.9ms (Effect On)

– Power: 9V DC (Negative Tip)

– Current Draw: < 600mA

– Dimensions: 105(L)x115(W)x58(H)mm

– Weight: 450g
